China Precision Double Beam Oscillating Knife Cutting Machine Controller Ruida RDD6584U wholesale

Precision Double Beam Oscillating Knife Cutting Machine Controller Ruida RDD6584U

Name: Precision Double Beam Oscillating Knife Cutting Machine Controller Ruida RDD6584U
Brand: Ruida
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Ruida

Model Number :RDD6584U

Certification :CE, FCC, RoHS

Place of Origin :China

MOQ :1

Price :Negotiable, contact us

Payment Terms :L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time :2-3 work days

Packaging Details :Carton

Model :Ordinary double track

axis :16

Communication interface :Ethernet, USB and WIFI (optional)

Panel :7''touch screen, support parameter modification, static preview and dynamic display of graphics

Tool :vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning

Feeding :Support X/Y/U axis feeding independently or Y and U axes feeding synchronously

Camera :None

Light source system :None

Cutting function :Double coordinate systems asynchronous cutting

Encryption :Support

Contact Now

Add to Cart

View Product Description

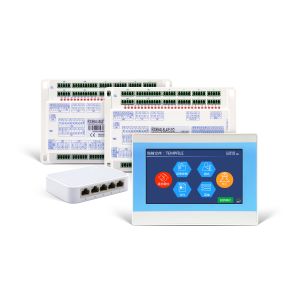

Ruida Double Beam Oscillating Knife Cutting Control System RDD6584U Controller

Product Overview

The RDD6584U integrates multiple processing methods including vibrating cutter, circular cutter, milling cutter, and pressing wheel. It features a 7" industrial touch screen for easy operation and supports both online and offline working modes.

Key Specifications

Attribute	Value
Model	Ordinary double track
Axis	16
Communication interface	Ethernet, USB and WIFI (optional)

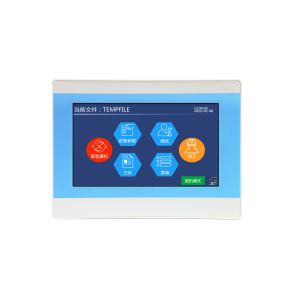

Panel	7'' touch screen with parameter modification and graphic display
Tool Support	Vibration knife, round knife, milling cutter, press wheel, punching tools, brush processing
Cutting Function	Double coordinate systems asynchronous cutting

Key Features

Supports double coordinate systems asynchronous processing in double beams or double cantilevers mode
Integrated processing for multiple tools including vibration cutter, round tool, and milling cutter
Supports single XY axis processing, double XY axes asynchronous processing
Mark point positioning cutting and large-format panoramic visual cutting
Onboard clock and remote firmware upgrade capability
Supports 15 languages including English, Chinese, Spanish, and more
