China Double Beam Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U wholesale

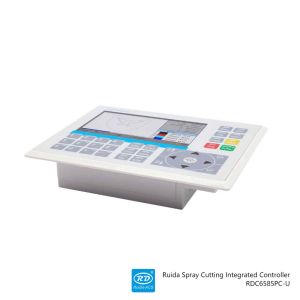

Double Beam Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U

Name: Double Beam Laser Height Controller With 5 Inch Screen Ruida RDC6585PCU
Brand: Ruida
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Ruida

Model Number :RDC6585PC-U

Certification :CE, FCC, RoHS

Place of Origin :China

MOQ :1

Price :Negotiable, contact us

Payment Terms :L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time :2-3 work days

Packaging Details :Carton

Laser :CO2 glass tube and CO2 RF tube

Nozzle :Support solenoid valve and piezoelectric valve

Axes :16

Laser channels :Four

Spray adhesive channels :Four

Double head synchronous :Support

Language :12 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, and Italian

Software :RDWorksV8

Size :Panel: L180mm*W140mm*H42.1mm Mainboard: L211.5mm*W134mm*H33mm

Double coordinate system processing :Support

Glue spray process :Support the adjustment of position and amount of glue spray, delay process control

Model :Double heads asynchronously

Contact Now

Add to Cart

View Product Description

Ruida RDC6585PC-U Laser Height Controller Double Beam Large Visual Spray Cutting Control System

Product Overview

The Ruida Controller RDC6585PC-U is a double beam large visual spray cutting integrated control card featuring a 5-inch color screen for intuitive operation. This advanced system combines laser cutting and glue spraying capabilities with comprehensive motion control for industrial applications.

Technical Specifications

Attribute	Value
Laser Compatibility	CO2 glass tube and CO2 RF tube
Nozzle Support	Solenoid valve and piezoelectric valve
Axes	16
Laser Channels	4
Spray Adhesive Channels	4
Double Head Synchronization	Supported
Languages	12 languages including English, Chinese, French, Russian, and more
Software	RDWorksV8
Dimensions	Panel: 180×140×42.1mm, Mainboard: 211.5×134×33mm

Key Features

Precise PPI Control: Accurate pulse per inch control for high-quality output
Layered Processing: Simultaneous laser cutting and glue spraying through different layers
Large-Format Visual Positioning: Panoramic visual positioning with asynchronous double head processing
Dual-Purpose Functionality: Integrated control for both laser cutting and adhesive application
Multiple Interfaces: Ethernet and USB connectivity with various I/O control interfaces

Applications

Ideal for glue spray, dispensing, drawing lines and laser cutting in various industries including:

Clothing and textiles
Leather goods
Toy manufacturing
Footwear production
3C electronics

Double Beam Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U

Software & Compatibility

Compatible with Unionlaser software and includes wireless handheld box, RD-APP and RD-WIFI accessories.

Product Certification
