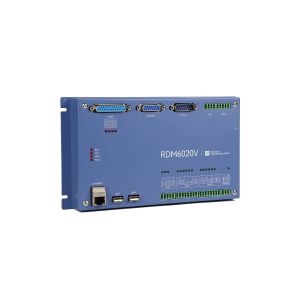

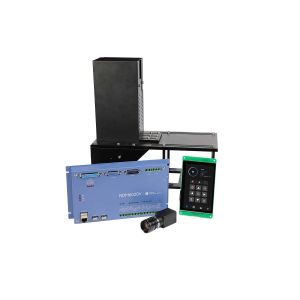

China CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V wholesale

CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V

Name: CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V
Brand: Ruida
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Ruida

Model Number :RDM6020V

Certification :CE, FCC, RoHS

Place of Origin :China

MOQ :1

Price :Negotiable, contact us

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time :2-3 work days

Packaging Details :Carton

Laser Source :CO2, fiber and UV

Axes control :Pulse+dir or +/-pulse, differential double-ended output

Galvanometer protocol :XY2-100

Input/output :6 channels input/output

Installment Encryption :Support

Firmware Upgrade :Remote upgrade of mainboard program

APP :Mantisolo, operating system: Android 8.0 or above, IOS 12.0 or above

Software :LaserMark

Language :Chinese and English

Axes :4 motion axes + 2 galvanometer shafts

Axis control interface :Pulse + dir or +/- pulse, differential two-terminal output

System Function :Ordinary marking

operating system :WinXP, Win7, Win8, Win10, 32-bit or 64-bit

Contact Now

Add to Cart

View Product Description

RDM6020V with UVC Camera Laser Marking Controller

Product Overview

This advanced laser marking control system combines superior capabilities with seamless operation, delivering versatile marking solutions for multiple industry sectors to enhance production performance and product quality.

Key Specifications

Attribute	Value
Laser Source	CO2, fiber and UV
Axes control	Pulse+dir or +/-pulse, differential double-ended output
Galvanometer protocol	XY2-100
Input/output	6 channels input/output
Installment Encryption	Support
Firmware Upgrade	Remote upgrade of mainboard program
APP	Mantisolo, operating system: Android 8.0 or above, IOS 12.0 or above
Software	LaserMark
Language	Chinese and English
Axes	4 motion axes + 2 galvanometer shafts
System Function	Ordinary marking
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit

CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V

Application Fields

CO2 Laser: Ideal for marking wood, leather, plastics, and paper materials with excellent infrared absorption
Fiber Laser: Perfect for stainless steel, aluminum oxide, copper oxide, alloys, jewelry, metals, and electronic components with high power density
UV Laser: Precision marking for plastics, PVC, circuit boards, cables, chips, LCD screens, glass, and food packaging with minimal material damage

Software

LaserMark software provides comprehensive control and customization for all marking operations.

Product Certification
